Характеристики

Model Number: P5

Warranty: 1 Year

Special Features: Face detection, NIGHT VISION, PAN-TILT, Two-way Audio

Sensor: CMOS

Style: PTZ camera

Function: Waterproof / Weatherproof, Two-way Audio, NIGHT VISION, RESET

Video Compression Format: H.265

Data Storage Options: NVR, Micro SD card

Application: Indoor, Outdoor

Customized support: Customized logo, OEM, ODM

Name: Wifi IP Camera

Сертификация: ce, FCC, RoHS

Основная информация

Сертификация: ce, FCC, RoHS

Model Number: P5

Оплата и доставка Условия

Packaging Details: Paper packaging

Характер продукции

Product Description

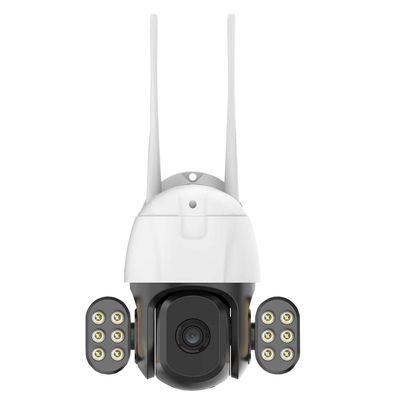

Humanoid Recognition AI Alarm WIFI Dome IP Camera

Features introduction:

* Free 30-day cloud storage, universal at home and abroad;
* Human detection: crossing line, area, two-way flow detection,only
for human shape, the item doesn't trigger alarm;
* Push mobile human alarm info sensitively, custom voice alarm settings;
* Support wireless WiFi and AP hotspot / own network port wired connection / 5DB
dual antenna transmission signal;
* Use DC 12V/2A international standard power supply, (sales products do not contain
power, you need to buy)
*TF card supports up to 128G H.264+ technology to double storage;
* Two-way voice intercom, mobile alarm information push, login via WeChat;
*12 left and right lights warm light + 4 lights hidden infrared dual light source color night vision is clearly visible;
*CMS computer client saves and plays back in real time;
* Standard pickup and speaker sound playback; intelligent alert mode,
dual light source switching;

Technical Parameters
Camera parameter	Model	P5 2K[2.8Inches Human Detection Dual Lights Dome Camera]
	processor	GK7205V200
	Camera pixel	1296P
	sensor	3 million 1/2.8" SC4239H CMOS sensor, color 0.1Lux F1.2, black and white 0.01Lux F1.2
	shutter	1/50 (1/60) seconds to 1/10000 seconds
	Lens	3.6mm-F1.4, horizontal vision 87°, diagonal 104°
	Lens interface	M12
	Night light pattern	Left and right 12 lights warm light + 4 lights hidden infrared warm light night vision full color [automatic switching]
	Infrared illumination distance	Within 30 meters
Compression format	Video compression format	H.265+
	Video compression code rate	Super HD, label second gear, rate adaptive
image	Maximum image size	Main stream: 23041296; sub-stream: 704576
	Frame rate	Maximum frame rate: 50Hz: 1-25fps network frame rate adaptation
Features	Alert function	Intelligent dual lights human recognition alarm/cross-line, area, bidirectional flow detection
	Alarm mode	Siren warning, push alarm via mobile APP , custom alarm voice, cross-line/area alarm setting
	Two-way voice	stand by
	Cloud storage	Support (free experience for 30 days) at home and abroad
	Irradiation rotation angle	Rotate 320 degrees horizontally left and right and 90 degrees vertically
	supporting agreement	XM private agreement ONVIF protocol / support to expand RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP network protocols
interface	Wired interface	1 RJ45 10M/100M adaptive Ethernet port
	Storage interface	Micro SD card (max. 8-128G)
Wireless parameter	wifi standard	IEEE802.11b, 802.11g, 802.11n
	Frequency Range	2.4 GHz ~ 2.4835 GHz
Other range	Power consumption	6W MAX
	Product Size	160107107mm
	Color box size	250213127mm
	Temperature and humidity	Zero 10 ° C -60 ° C, humidity less than 90% [no condensation]
	power supply	DC 12V ± 10%
	weight	Net weight: 486g Gross weight: 746g (Note: actual product)

Camera parameter	Model	P5-2.5K[2.8Inches Human Detection Dual Lights Dome Camera]
	processor	NT98562+SC401AI
	Camera pixel	2.5K
	sensor	4 million 1/3"SC401AI high performance CMOS sensor
	shutter	1/50 (1/60) seconds to 1/10000 seconds
	Lens	3.6mm-F1.4, horizontal vision 87°, diagonal 104°
	Lens interface	M12
	Night light pattern	Left and right 12 lights warm light + 4 lights hidden infrared warm light night vision full color [automatic switching]
	Infrared illumination distance	Within 30 meters
Compression format	Video compression format	H.265+
	Video compression code rate	Super HD, label second gear, rate adaptive
image	Maximum image size	Main stream: 25601440@12fps; sub stream: 640360@12fps
	Frame rate	Maximum frame rate: 50Hz: 1-25fps network frame rate adaptation
Features	Alert function	Intelligent dual lights human recognition alarm/cross-line, area, bidirectional flow detection
	Alarm mode	Siren warning, push alarm via mobile APP , custom alarm voice, cross-line/area alarm setting
	Two-way voice	stand by
	Cloud storage	Support (free experience for 30 days) at home and abroad
	Irradiation rotation angle	Rotate 320 degrees horizontally left and right and 90 degrees vertically
	supporting agreement	XM private agreement ONVIF protocol / support to expand RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP network protocols
interface	Wired interface	1 RJ45 10M/100M adaptive Ethernet port
	Storage interface	Micro SD card (max. 8-128G)
Wireless parameter	wifi standard	IEEE802.11b, 802.11g, 802.11n
	Frequency Range	2.4 GHz ~ 2.4835 GHz
Other range	Power consumption	6W MAX
	Product Size	160107107mm
	Color box size	250213127mm
	Temperature and humidity	Zero 10 ° C -60 ° C, humidity less than 90% [no condensation]
	power supply	DC 12V ± 10%
	weight	Net weight: 486g Gross weight: 746g (Note: actual product)

Camera parameter	Model	P5-4K[2.8Inches Human Detection Dual Lights Dome Camera]
	processor	NT98566+SC8239
	Camera pixel	8MP
	sensor	1/2.7"Color 8.0Mega Pixels Coms
	shutter	1/50 (1/60) seconds to 1/10000 seconds
	Lens	3.6mm-F1.4, horizontal vision 87°, diagonal 104°
	Lens interface	M12
	Night light pattern	Left and right 12 lights warm light + 4 lights hidden infrared warm light night vision full color [automatic switching]
	Infrared illumination distance	Within 30 meters
Compression format	Video compression format	H.265+
	Video compression code rate	Super HD, label second gear, rate adaptive
image	Maximum image size	Main stream: 3840*2160 @12fps;
	Frame rate	Maximum frame rate: 50Hz: 1-25fps network frame rate adaptation
Features	Alert function	Intelligent dual lights human recognition alarm/cross-line, area, bidirectional flow detection
	Alarm mode	Siren warning, push alarm via mobile APP , custom alarm voice, cross-line/area alarm setting
	Two-way voice	stand by
	Cloud storage	Support (free experience for 30 days) at home and abroad
	Irradiation rotation angle	Rotate 320 degrees horizontally left and right and 90 degrees vertically
	supporting agreement	XM private agreement ONVIF protocol / support to expand RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP network protocols
interface	Wired interface	1 RJ45 10M/100M adaptive Ethernet port
	Storage interface	Micro SD card (max. 8-128G)
Wireless parameter	wifi standard	IEEE802.11b, 802.11g, 802.11n
	Frequency Range	2.4 GHz ~ 2.4835 GHz
Other range	Power consumption	6W MAX
	Product Size	160107107mm
	Color box size	250213127mm
	Temperature and humidity	Zero 10 ° C -60 ° C, humidity less than 90% [no condensation]
	power supply	DC 12V ± 10%
	weight	Net weight: 486g Gross weight: 746g (Note: actual product)

1 x WIFI camera

1 x User Manual
(Micro SD Card is not included)

Important notices:
1 .SD Card NOT included
2. To install a Micro SD card, open the camera and look for the SD card slot on back of the camera board

3. If you choose an adapter, please leave a message and choose the type of power plug: (EU plug/US plug/AU plug/UK plug)

4. If repairs are required, contact the seller for instructions
5. This camera does not support website browsers such as IE, Chrome
6. This camera does not cloud viewing and saving information
7. Recording time depends on the SD Card being used. Check the recording times below for reference :
16Gb: 4-5days
32Gb :8-10days
64Gb:18-20days
128Gb:28-30days
6. 5G Network WIFI not supported

Humanoid Detection

Support cordon & alert area custom detect setting, Mix line, area, two-way flow detection, for human form

PTZ Remote Control Anywhere

Camera head are rotatable with 270° pan and 100°tilt. You can control it via the app and get a sweeping view on every inch of your entire house.

IP66 Waterproof & Dustproof

The shell is made of high-grade plastic , which is waterproof, sun-proof and dust-proof. It is suitable for any environment.

Smart Dual Light Source

Built-in 4Pcs White LED and 4Pcs IR LED, Monitor moving objects, automatically illuminate. This is an impressive little weapon against crime.

Clear Two Way Audio

Camera is built with microphone and speaker. So you can talk to your kids via your Smartphone remotely whenever you want

Onvif Protocol

Support onvif protocol, can be connected to a third-party NVR centralized management camera, our NVR is the best choice.

Flexible & Secure Storage Options

The camera supports up to 128GB TF card local backup and also provides cloud storage service(Need to pay extra cost)
